Front Service Epistar SMD3535 P6 Stadium Led Display

Product Categories
Shenzhen Xing Guang Cai Technology Co., Limited
Contact Now

Front Service Epistar SMD3535 P6 Stadium Led Display

  • 1
  • 2
  • 3

Brand Name : XGC

Model Number : P6

Certification : CE ,FCC, ROSH CCC

Place of Origin : Shenzhen,China

MOQ : 1PCS/㎡

Price : USD1000--USD1300/pcs

Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram

Supply Ability : 5000㎡ per month.

Delivery Time : 7-15 days

Packaging Details : Plywood case、flight case

Product name : Led Video Display Panel

Pixels : 6mm

Screen dimension : Can be customized

Tube chip color : Full Color

Display function : Video,picture,Outdoor,text,graphics

Led chip : Epistar

Life span : 100000 hours

Application : Live Events Led Display,commercail

Contact Now

Outdoor SMD3535 LED digital counter display P6 front service stadium LED screen

Product Feature:

1. High brightness,Easy installation.

2. Energy saving.(Max. power consumption 600W/sqm,Avg.150-200W/sqm,can save 30% power than the common product.)

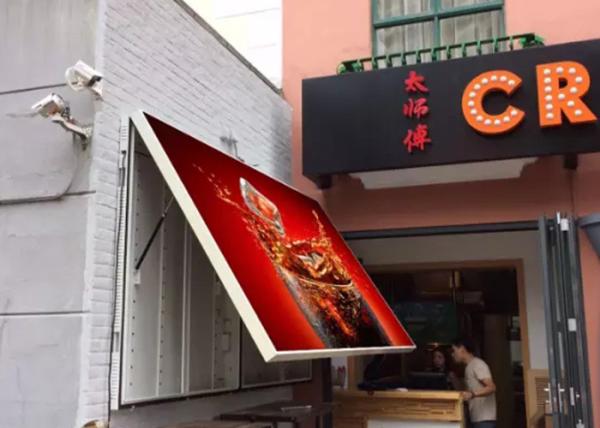

3. Easy maintenance(No need to maintenance screen from the back side).

4. Advanced dot adjusting,no need to setup parameter on your side,you can use screen directly when you receive it.

5. Novastar 4G ,USB.CLOUD,WIFI LED display controller.

6. Customized cabinet size/color/shape according to the client requirements,we can design a good solution with the best price according to your project requirments in detail.

Technical Parameter for P6 OUTDOOR LED DISPLAY
Module Specifications
1 Pixel Pitch 6mm

2 Led Type SMD3535
3 Pixel configuration 1R1G1B
4 Module Size 192x192mm
5 Module Resolution 32x32pixels
6 LED Chip Epistar
7 LED brand Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1 Cabinet Size 960x1920mm
2 Cabinet Resolution 160x320 pixels
3 Module Qty. 5x10pcs
4 Power Supply 5V40A 200W/ 5V60A 300W
6 Cabinet Materials iron
Screen Parameters
1 Pixel density 27777dots/㎡
2 Screen Resolution according to screen size
3 Cabinet Qty. according to screen size
4 Brightness ≥5500 CD/sqm
5 Refresh rate ≥1920Hz/s
6 Scanning Mode 1/8scan
7 Viewing Angle H:140°;V:140°
8 Viewing Distance ≥6m
9 Gray Level 16 Bit
10 Power Input AC110~240V
11 Power Comsuption Max: 1000W/㎡ Average:200W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65/IP54
15 Operating Temperature -35℃~ 65℃
16 Storage Humidity 10℃~70℃RH
17 Control Syetem Colorlight/Nova/Linsn
18 Operating System Windows98/me/2000 /NT/XP
19 Power Supply 5V40A 200W/5V60A 300W
20 Maintance Access Back service/Front service
21 Video processor Colorlight/Novastar/Linsn/VDWALL/RGBLIN/KYstar
21 Control mode computer /USB/WIFI/4G

HS code: 8528591090

Regular plywood case package.

Front Service Epistar SMD3535 P6 Stadium Led Display

Project case:

Front Service Epistar SMD3535 P6 Stadium Led Display

How to send video/picture/text to LED display?

Front Service Epistar SMD3535 P6 Stadium Led Display

Trade Terms:
1).Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity.
2).Production lead time: Within 100 sqm: 8-15days, more than 100 sqm:30days.
3).Sample can be deliveried within 3days.
4).Shipping port: Shenzhen, Mainland China.
5).Discounts are offered based on order quantities.

Shipping Information:

  • FOB Port:Shenzhen
  • Lead Time:7 - 15 days
  • HTS Code:8528.59.10 90
  • Dimensions per Unit:132 × 105 × 115Centimeters
  • Weight per Unit:260 Kilograms
  • Units per Export Carton:5.53sqm
