Brand Name : XGCLED
Model Number : P8 outdoor fixed LED display
Place of Origin : Shen Zhen ,China
MOQ : 10 square meters
Price : $540~700USD/ ㎡
Payment Terms : T/T, Western Union
Supply Ability : 5000 square meter per month
Delivery Time : 7-20days
Packaging Details : Cartons , wooden case , fright case
Model : P8 outdoor fixed LED display
Pixel pitch : 8mm
Module size : 256mmX128mm
Module resolution : 32*16pixels
LED type : SMD 3535
Cabinet size : 1024mmX1024mm
Cabinet resolution : 128*128pixels
Material : Iron Cabinet
Cabinet weight : <40kg
Pixel density : 15625pixels/㎡
Brightness : 4000~6000cd/㎡
Grey level : 14bit
Refresh Rate : 1920Hz
Driver mode : Constant current driver
Environmental : Outdoor
IP rating : IP65
Ave/Max Power Consumption : 350W/㎡~800W/ ㎡
Module Specification | |||
1 | Pixel Pitch | 8mm | |
2 | Led Type | SMD3535 | |
3 | Module Size | 256x128mm | |
4 | Module Resolution | 32*16 pixels | |
5 | Driving IC | MBI5124 | |
6 | LED lamp | Kinglight | |
Cabinet Specification | |||
1 | Cabinet Size | 1024mmX1024mm | |
2 | Cabinet Resolution | 128*128pixels | |
3 | Module Qty. | 4X8pcs | |
4 | Cabinet Materials | Standard Steel Cabinet | |
5 | Cabinet Weight | < 40Kg | |
Screen Parameters | |||
1 | Screen Size | Costom Size | |
2 | Brightness | 5500 cd/m2 | |
3 | Scanning Mode | 1/4scan | |
4 | Viewing Angle | H:140°;V:140° | |
5 | Viewing Distance | >8m | |
6 | Gray Level | 14 Bit | |
7 | Refresh Frequency | 1920 Hz | |
8 | Power Input | AC 220-240V | |
9 | Power Comsuption | Max: 800W/㎡ Average: 250W/㎡ | |
10 | MTBF--hours | >10,000 hours | |
11 | Life--hours | ≥100,000 hours | |
12 | IP Grade | IP65 | |
13 | Operating Temperature | -30℃~ 60℃ | |
14 | Storage Humidity | 10℃~90℃RH | |
15 | Control Syetem | Novastar | |
16 | Operating System | Windows98/2000/NT/XP | |
17 | Power Supply | G-ENERGY | |
18 | Maintance Access | Back service |
![]() |

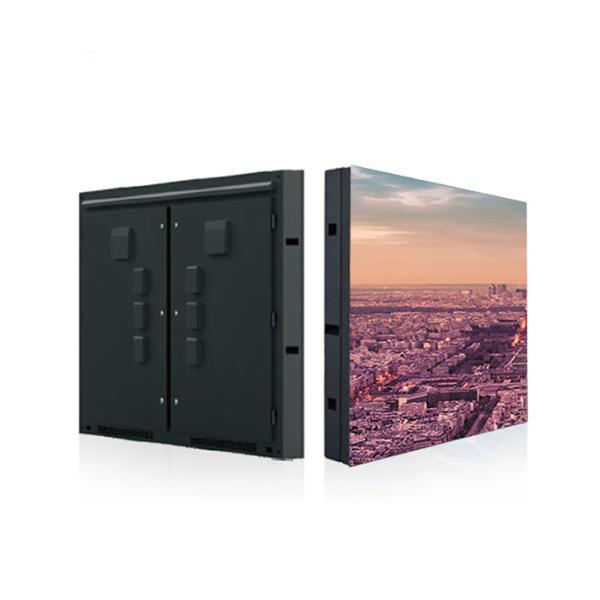

Novastar IP65 SMD 3535 P8 Outdoor Digital Advertising Screens Images |
