Die-casting aluminum cabinet p3.91 led video wall panel screen indoor led display details
Features
High refresh rate , 3840Hz , free-flicker in camera
High contrast , 4500:1 ,perfect color uniform , great visual effect
Light weight 12kg per panel , aluminum die casting cabinet
Self-cooling system , no need fan , noiseless
Extremity flat , no gap between panel after installation .
One person fast installation design , help to save labor cost
One for all application indoor & outdoor , fixed & rental
| 1, Module specification |
| No | Item | Parameter | Photo |
| 1 | Pixel pitch | 3.91MM |
|
| 2 | Module size | 250*250MM |
| 3 | Module weight | 0.3kg |
| 4 | LED Type | SMD 3 in 1 |
| 5 | Pixel Config | 1R1G1B |
| 6 | Total Pixels | 64*32Pixel |
| 7 | Brightness | ≥1,200cd/㎡ |
| 8 | Drive mode | 1/16 scan,constant current |
| 9 | View angle | 160°/140° |
| 10 | Application | Indoor |

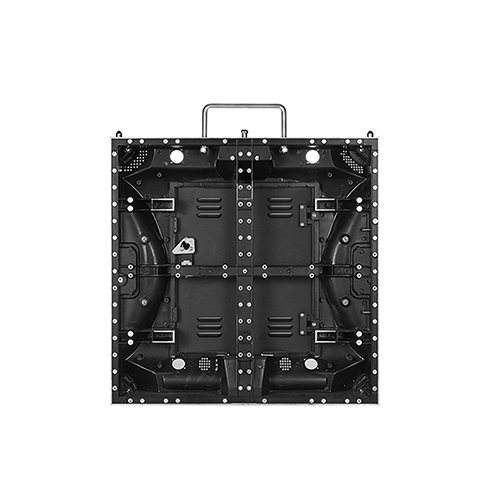

| 2,Cabinet specification |
| No | Item | Parameter | Photo |
| 1 | Pixel density | 62,500.00dots/㎡ |  |
| 2 | Cabinet size | 768x768mm |
| 3 | Max power consumption | 600W/㎡ |
| 4 | Average power consumption | 200W/㎡ |
| 5 | Weight | 30kg |
| 6 | Input voltage | AC110/220V |
| 7 | Cabinet material | Coated Steel |
| 8 | Lock | Yes |
| 9 | Connectors | Yes |
| 10 | Stand supporter | No |
| 11 | Power supply brand | G-energy |
| 12 | IC | CHIP2038 |
| 3,Screen specification |
| No | Item | Parameter | Photo |
| 1 | Best viewing distance | >3m |  |
| 2 | Operation temp | -20℃~60℃ |
| 3 | Operation Humidity | 10%～90% |
| 4 | Control PC | Offered by yourself |
| 5 | Refresh rate | ≥480Hz or ≤4000Hz |
| 6 | Frame rate | 60 frame/s |
| 7 | Gray scale | >8192grade |
| 8 | Colors of display | 1.07 billion |
| 9 | Brightness adjustment | Brightness adjustment by software |
| 10 | Video Signal | PAL/NTSC |
| 11 | MTBF | >5,000 hours |
| 12 | Life span | >100,000 hours |
| 13 | Drive mode | static, constant current |
| 14 | Operation system | Windows Series |
| 15 | Display function file formats | AVI, MOV, MPG, DAT, VOB |
| 16 | Information source | Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, RGB, VGA, and so on. |
Project case
Suit for advertisement , stadium , exhibition , TV-Show , mansion , video wall , shopping mall , banks
, schools, bus station , airport , gym , market , factoties , monitoring centers, hospital , bar etc.

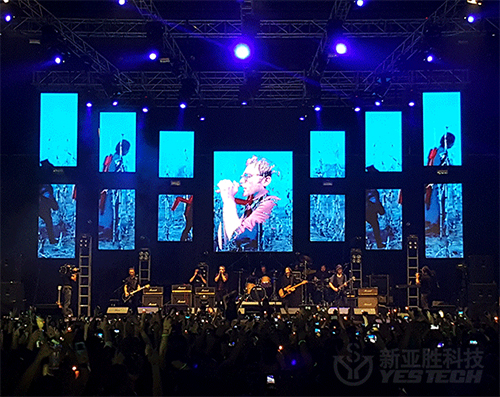

1. Video display for advertisement
2. Live broadcast for news , sports , concert
3. Stage background
4. Information display for time , schedule , text.
